Gate Valves

For more product's details

Gate Valves

AVM Metal Seated Gate Valves

The AVM Metal Seated Gate Valve is a computer optimised streamlined design for low head loss. It is designed for the water and sewage industry.

Features

Full-bore design
Low Head Loss
Low torque requirements
Weld-on overlay body and disc seats
Back-seating facility; enables change of stem seals while under pressure
Flanged ends to EN 1092-2 PN 10 to PN 40 or ANSI Class 125, 250 or 300
Chevron packing as stem seal for DN 200 and up as standard
Accurate side guides ensure smooth and safe operation.
Aeration and drain taps
ISO 5210 top-flange is standard from DN 350 and up
Powder epoxy coating with drinking water certificate

Specification

Size Range

DN 50 – DN 2000

Working Pressure

PN 10 – PN 40

Design Standards

BS 5163 (EN 1074)
BS EN 1092

Medium

Water, Sewage

For more product's details

Gate Valves

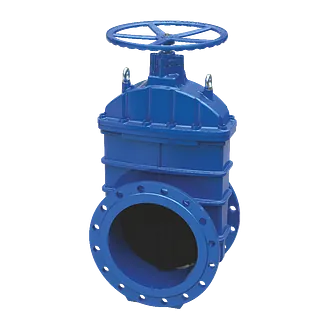

AVM Resilient Seated Gate Valves

The AVM Resilient Seated Gate Valve is a computer-optimised, streamlined design for low head-loss. It is designed for various applications, such as water, sewage, industry, desalination etc., and exceeds the requirements of the applicable standards.

Features

Gate fully encapsulated with EPDM or NBR rubber
Low head-loss, full bore
Low torque requirements
Face-to-face BS 5163, EN558 Series 3, 4 and 5, AWWA C509/515.
Flanged ends to EN1092 PN10 to PN25 and ANSI B16.5 Class 125 to 250.
Zero leakage Class A to EN12266
Powder epoxy coating with drinking water certificate

Specification

Size Range

DN 50 – DN 1600

Working Pressure

PN 10 – PN 25

Design Standards

BS 5163, EN 1074, AWWA C509/515

Medium

Water, Sewage, Saline Water, Desalination, Irrigation

For more product's details

Gate Valves

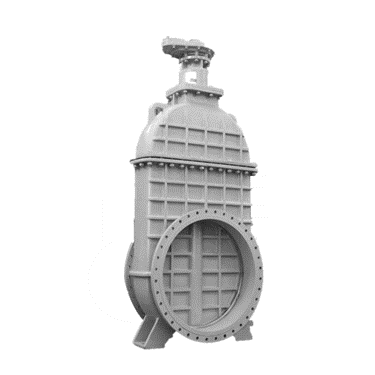

EK Metal Seated Gate Valves

Metal seated, double flanged, wedge type sluice valve for drinking water and neutral liquids up to max. 70 °C.

Features

Non-rising stem, wedge type sluice valve
Metal seated
Material of construction can be fully customized to the application and project
requirement
Epoxy coating with a minimum thickness of 250 μm
Other coating and/or coating thickness are available upon request

Specification

Size Range

DN 50 – DN 1600

Working Pressure

PN 10 / PN 16

Design Standards

BS EN 1171:2005, BS EN 558, EN 1092, ISO 5211, BS EN 12266:2012

Medium

Water, Neutral Liquids
